Magnetic field from a straight current-carrying wire segment. More...

#include <CurrentSegment.hpp>

Inheritance diagram for Phyth::Electromagnetics::CurrentSegment:

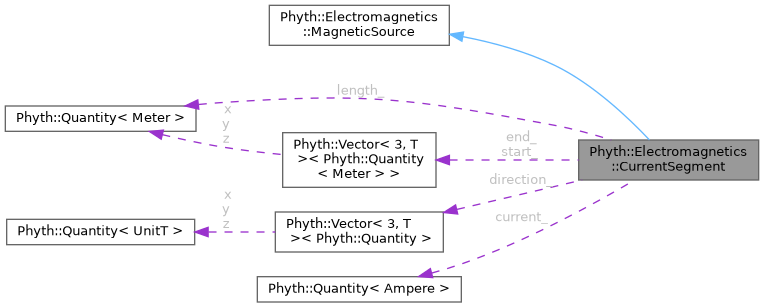

Collaboration diagram for Phyth::Electromagnetics::CurrentSegment:

[legend]

Public Member Functions
	CurrentSegment (const Vector3< Quantity< Meter > > &start, const Vector3< Quantity< Meter > > &end, const Quantity< Ampere > &current)
	Construct a current segment from start to end.

Vector3< Quantity< Tesla > >	GetMagneticFieldAt (const Vector3< Quantity< Meter > > &point) const override
	Compute the magnetic field at a point.

Quantity< Ampere >	GetCurrent () const

Quantity< Meter >	GetLength () const

const Vector3< Quantity< Meter > > &	GetStart () const

const Vector3< Quantity< Meter > > &	GetEnd () const

Public Member Functions inherited from Phyth::Electromagnetics::MagneticSource
virtual	~MagneticSource ()=default

Private Member Functions
Vector3< Quantity< Tesla > >	AnalyticSolution (const Vector3< Quantity< Meter > > &point) const
	Closed-form Biot-Savart solution for a finite straight wire.

bool	IsPointOnWire (const Vector3< Quantity< Meter > > &point) const
	Check if a point lies on the wire segment.

Quantity< Meter >	GetMinimumDistanceTo (const Vector3< Quantity< Meter > > &point) const
	Compute the minimum distance from a point to the wire segment.

Private Attributes
Vector3< Quantity< Meter > >	start_

Vector3< Quantity< Meter > >	end_

Vector3< Scalar >	direction_

Quantity< Meter >	length_

Quantity< Ampere >	current_

Detailed Description

Magnetic field from a straight current-carrying wire segment.

CurrentSegment computes the magnetic field generated by a finite straight wire segment carrying a steady current, using the Biot-Savart law in closed form.

The magnetic field direction follows the right-hand rule around the current direction (from start to end).

Example: auto start = Vector3<Quantity<Meter>>(-1.0_m, 0_m, 0_m); auto end = Vector3<Quantity<Meter>>(1.0_m, 0_m, 0_m); auto current = 5.0_A;

CurrentSegment wire(start, end, current); auto point = Vector3<Quantity<Meter>>(0_m, 0.1_m, 0_m); auto B = wire.GetMagneticFieldAt(point);

Note: The field is singular on the wire axis. Points on the wire will throw an exception.

Definition at line 32 of file CurrentSegment.hpp.

Constructor & Destructor Documentation

◆ CurrentSegment()

Phyth::Electromagnetics::CurrentSegment::CurrentSegment	(	const Vector3< Quantity< Meter > > &	start,
		const Vector3< Quantity< Meter > > &	end,
		const Quantity< Ampere > &	current
	)

inline

Construct a current segment from start to end.

Parameters

start	Starting point of the segment (meters)
end	Ending point of the segment (meters)
current	Current flowing from start to end (Amperes)

Exceptions

std::invalid_argument If segment length is zero

Definition at line 43 of file CurrentSegment.hpp.

Member Function Documentation

◆ AnalyticSolution()

Vector3< Quantity< Tesla > > Phyth::Electromagnetics::CurrentSegment::AnalyticSolution ( const Vector3< Quantity< Meter > > & point ) const

inlineprivate

Closed-form Biot-Savart solution for a finite straight wire.

The magnetic field at a point P is: B = (mu_0 * I / (4 * pi * rho)) * (z2/sqrt(rho^2 + z2^2) - z1/sqrt(rho^2 + z1^2)) * phi_hat

where:

rho is the perpendicular distance from P to the wire axis
z1, z2 are the distances from the projection point to the ends
phi_hat is the azimuthal unit vector around the wire

Parameters

point Position to evaluate the field

Returns: Magnetic field at that point

If rho is near zero (point on the wire axis), returns zero instead of throwing. The singularity is handled by the caller.

Definition at line 123 of file CurrentSegment.hpp.

◆ GetCurrent()

Quantity< Ampere > Phyth::Electromagnetics::CurrentSegment::GetCurrent ( ) const

inline

Returns: The current flowing through the segment (Amperes)

Definition at line 78 of file CurrentSegment.hpp.

◆ GetEnd()

const Vector3< Quantity< Meter > > & Phyth::Electromagnetics::CurrentSegment::GetEnd ( ) const

inline

Returns: The ending point of the segment

Definition at line 93 of file CurrentSegment.hpp.

◆ GetLength()

Quantity< Meter > Phyth::Electromagnetics::CurrentSegment::GetLength ( ) const

inline

Returns: The length of the segment (meters)

Definition at line 83 of file CurrentSegment.hpp.

◆ GetMagneticFieldAt()

Vector3< Quantity< Tesla > > Phyth::Electromagnetics::CurrentSegment::GetMagneticFieldAt ( const Vector3< Quantity< Meter > > & point ) const

inlineoverridevirtual

Compute the magnetic field at a point.

Parameters

point Position in 3D space (meters)

Returns: Magnetic flux density B (Tesla) as a Vector3

Exceptions

std::runtime_error If the point lies on the wire axis

The field is computed using the Biot-Savart law closed-form solution for a finite straight wire.

Implements Phyth::Electromagnetics::MagneticSource.

Definition at line 69 of file CurrentSegment.hpp.

◆ GetMinimumDistanceTo()

Quantity< Meter > Phyth::Electromagnetics::CurrentSegment::GetMinimumDistanceTo ( const Vector3< Quantity< Meter > > & point ) const

inlineprivate

Compute the minimum distance from a point to the wire segment.

Parameters

point Position to compute distance from

Returns: Minimum distance to the segment (meters)

This is used by MagneticSource interface for regularization.

Definition at line 189 of file CurrentSegment.hpp.

◆ GetStart()

const Vector3< Quantity< Meter > > & Phyth::Electromagnetics::CurrentSegment::GetStart ( ) const

inline

Returns: The starting point of the segment

Definition at line 88 of file CurrentSegment.hpp.

◆ IsPointOnWire()

bool Phyth::Electromagnetics::CurrentSegment::IsPointOnWire ( const Vector3< Quantity< Meter > > & point ) const

inlineprivate

Check if a point lies on the wire segment.

A point is considered "on the wire" if it is within tolerance of the wire axis and its projection falls within the segment bounds.

Parameters

point Position to check

Returns: true if the point is on the wire segment

Definition at line 162 of file CurrentSegment.hpp.

Member Data Documentation

◆ current_

Quantity<Ampere> Phyth::Electromagnetics::CurrentSegment::current_

private

Definition at line 102 of file CurrentSegment.hpp.

◆ direction_

Vector3<Scalar> Phyth::Electromagnetics::CurrentSegment::direction_

private

Definition at line 100 of file CurrentSegment.hpp.

◆ end_

Vector3<Quantity<Meter> > Phyth::Electromagnetics::CurrentSegment::end_

private

Definition at line 99 of file CurrentSegment.hpp.

◆ length_

Quantity<Meter> Phyth::Electromagnetics::CurrentSegment::length_

private

Definition at line 101 of file CurrentSegment.hpp.

◆ start_

Vector3<Quantity<Meter> > Phyth::Electromagnetics::CurrentSegment::start_

private

Definition at line 98 of file CurrentSegment.hpp.

The documentation for this class was generated from the following file:

include/Phyth/Elements/Electromagnetics/FieldSources/CurrentSegment.hpp
