Magnetic dipole with full electromagnetic field and dynamics. More...

#include <MagneticDipole.hpp>

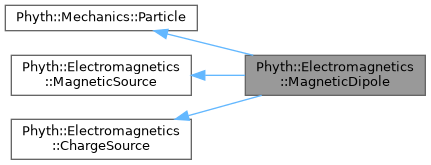

Inheritance diagram for Phyth::Electromagnetics::MagneticDipole:

[legend]

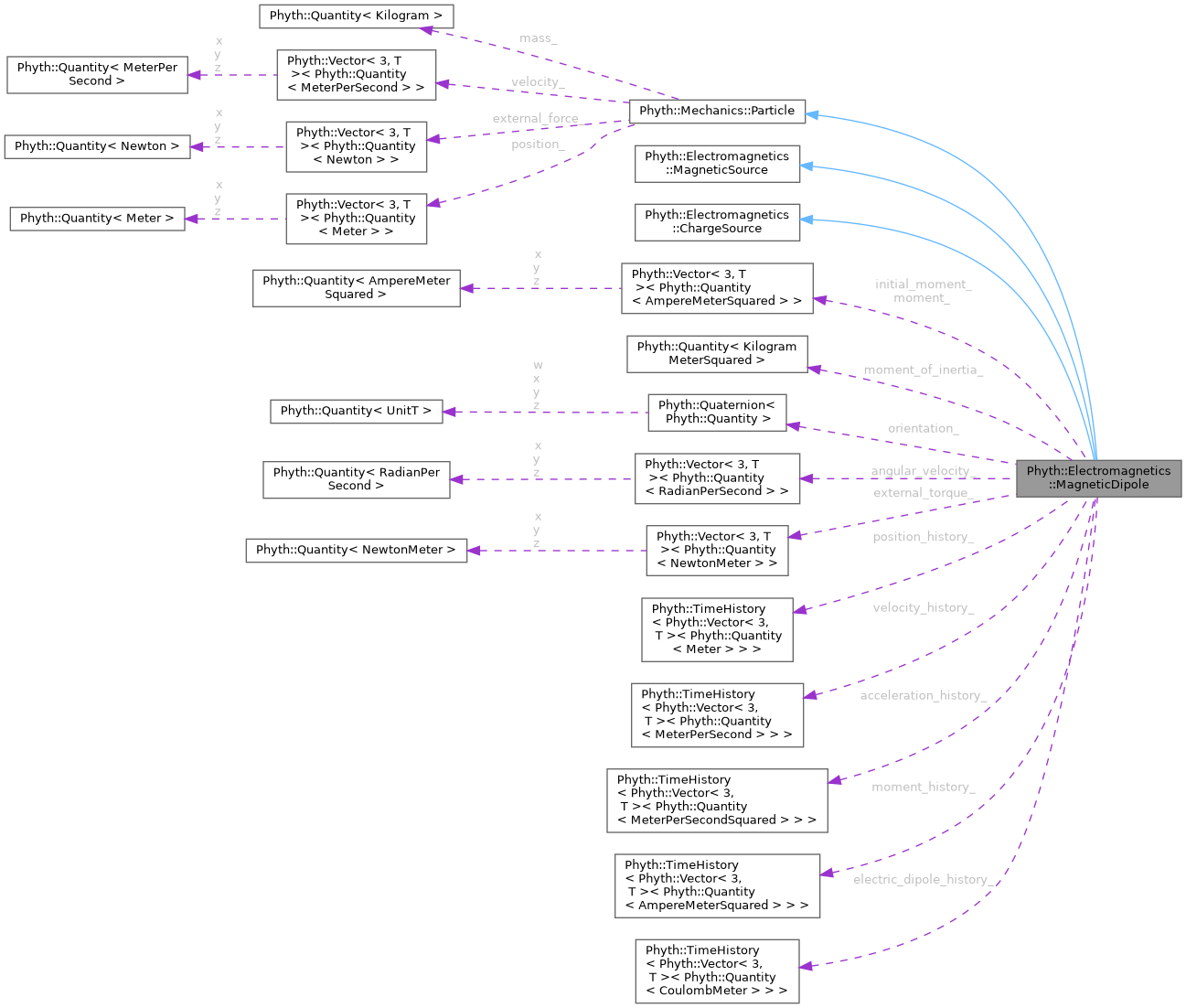

Collaboration diagram for Phyth::Electromagnetics::MagneticDipole:

[legend]

Public Member Functions
	MagneticDipole (const Quantity< Kilogram > mass, const Vector3< Quantity< Meter > > &position, const Vector3< Quantity< AmpereMeterSquared > > &moment, const Quantity< KilogramMeterSquared > &moment_of_inertia=0_kgm2)
	Construct a magnetic dipole.

void	SetComputeForcesFunction (const std::function< void(MagneticDipole *)> &func) noexcept
	Set the force computation function.

Vector3< Quantity< Tesla > >	GetMagneticFieldAt (const Vector3< Quantity< Meter > > &point) const override
	Get the magnetic field at a point.

Vector3< Quantity< NewtonPerCoulomb > >	GetElectricFieldAt (const Vector3< Quantity< Meter > > &point) const override
	Get the electric field at a point.

Quantity< Volt >	GetElectricPotentialAt (const Vector3< Quantity< Meter > > &point) const override
	Get the electric potential at a point.

Quantity< Coulomb >	GetTotalChargeValue () const override
	Get the total charge of the dipole.

Quantity< Meter >	GetMinimumDistanceTo (const Vector3< Quantity< Meter > > &point) const override
	Get the minimum distance from a point to the dipole location.

Vector3< Quantity< CoulombMeter > >	GetElectricDipoleMoment () const

void	ApplyMagneticGradientForce (const MagneticSource &field_source)
	Apply force from magnetic field gradient.

void	ApplyMagneticTorque (const MagneticSource &field_source)
	Apply torque from magnetic field.

void	ApplyElectricGradientForce (const ChargeSource &field_source)
	Apply force from electric field gradient.

void	ApplyElectricTorque (const ChargeSource &field_source)
	Apply torque from electric field.

void	ApplyMagneticForce (const MagneticSource &field_source)
	Apply all magnetic forces (gradient + torque)

void	ApplyElectricForce (const ChargeSource &field_source)
	Apply all electric forces (gradient + torque)

void	ApplyElectromagneticForce (const MagneticSource &magnetic_source, const ChargeSource &electric_source)
	Apply both magnetic and electric forces.

void	ApplyTorque (const Vector3< Quantity< NewtonMeter > > &torque)
	Apply a torque to the dipole.

void	Integrate () noexcept override
	Integrate dynamics using velocity Verlet.

void	SetMoment (const Vector3< Quantity< AmpereMeterSquared > > &m)
	Set the magnetic dipole moment.

const Vector3< Quantity< AmpereMeterSquared > > &	GetMoment () const

const Quaternion< Scalar > &	GetOrientation () const

void	SetOrientation (const Quaternion< Scalar > &q)
	Set the orientation quaternion.

const Vector3< Quantity< RadianPerSecond > > &	GetAngularVelocity () const

void	SetAngularVelocity (const Vector3< Quantity< RadianPerSecond > > &omega)
	Set the angular velocity.

Quantity< KilogramMeterSquared >	GetMomentOfInertia () const

void	SetMomentOfInertia (const Quantity< KilogramMeterSquared > &I)
	Set the moment of inertia.

Public Member Functions inherited from Phyth::Mechanics::Particle
	Particle (const Quantity< Kilogram > &mass, const Vector3< Quantity< Meter > > &position) noexcept
	Construct a particle with mass and initial position.

virtual	~Particle ()=default

void	ApplyForce (const Vector3< Quantity< Newton > > &force)
	Accumulate an external force on the particle.

constexpr const auto &	GetPosition () const noexcept

void	SetPosition (const Vector3< Quantity< Meter > > &position) noexcept
	Set the particle position (m)

constexpr auto	GetMass () const noexcept

void	SetMass (const Quantity< Kilogram > &mass) noexcept
	Set the particle mass (kg)

constexpr const auto &	GetVelocity () const noexcept

void	SetVelocity (const Vector3< Quantity< MeterPerSecond > > &velocity) noexcept
	Set the particle velocity (m/s)

constexpr bool	IsFixed () const noexcept

void	SetFixed (const bool fixed) noexcept
	Set whether the particle is fixed (immovable)

constexpr const auto &	GetExternalForce () const noexcept

void	SetExternalForce (const Vector3< Quantity< Newton > > &external_force) noexcept
	Manually set the external force (N)

void	SetComputeForcesFunction (const std::function< void(Particle *)> &func) noexcept
	Set the user-defined force computation function.

Quantity< Joule >	GetPotentialEnergy (const Quantity< Meter > y_ref=0) const
	Compute gravitational potential energy relative to a reference height.

Quantity< Joule >	GetKineticEnergy () const noexcept
	Compute kinetic energy.

Quantity< Joule >	GetTotalEnergy (const Quantity< Meter > y_ref=0) const noexcept
	Compute total mechanical energy.

Public Member Functions inherited from Phyth::Electromagnetics::MagneticSource
virtual	~MagneticSource ()=default

Public Member Functions inherited from Phyth::Electromagnetics::ChargeSource
virtual	~ChargeSource ()=default

virtual Quantity< CoulombPerCubicMeter >	GetChargeDensityAt (const Vector3< Quantity< Meter > > &point) const
	Get the charge density at a point.

Private Member Functions
Vector3< Quantity< CoulombMeter > >	GetRelativisticDipoleMomentCurrent () const

Vector3< Quantity< Meter > >	GetPositionAtOffset (const Quantity< Second > &offset) const
	Get position at a time offset in the past.

Vector3< Quantity< MeterPerSecond > >	GetVelocityAtOffset (const Quantity< Second > &offset) const
	Get velocity at a time offset in the past.

Vector3< Quantity< MeterPerSecondSquared > >	GetAccelerationAtOffset (const Quantity< Second > &offset) const
	Get acceleration at a time offset in the past.

Vector3< Quantity< AmpereMeterSquared > >	GetMomentAtOffset (const Quantity< Second > &offset) const
	Get magnetic moment at a time offset in the past.

Vector3< Quantity< CoulombMeter > >	GetElectricDipoleAtOffset (const Quantity< Second > &offset) const
	Get electric dipole moment at a time offset in the past.

Quantity< Second >	SolveRetardedTimeOffset (const Vector3< Quantity< Meter > > &point) const
	Solve for the retarded time offset using Newton's method.

Quantity< Second >	SolveRetardedTimeOffsetBisection (const Vector3< Quantity< Meter > > &point, Quantity< Second > dt_low, Quantity< Second > dt_high) const
	Solve for the retarded time offset using bisection method.

Vector3< decltype(0_Am2/1_s)>	ComputeMomentFirstDerivative (const Quantity< Second > &retarded_dt) const
	Compute first time derivative of magnetic moment at retarded time.

Vector3< decltype(0_Am2/1_s/1_s)>	ComputeMomentSecondDerivative (const Quantity< Second > &retarded_dt) const
	Compute second time derivative of magnetic moment at retarded time.

Vector3< decltype(1_Cm/1_s)>	ComputeElectricDipoleFirstDerivative (const Quantity< Second > &retarded_dt) const
	Compute first time derivative of electric dipole moment at retarded time.

Vector3< decltype(1_Cm/1_s/1_s)>	ComputeElectricDipoleSecondDerivative (const Quantity< Second > &retarded_dt) const
	Compute second time derivative of electric dipole moment at retarded time.

Vector3< decltype(1_mps2/1_s)>	ComputeAccelerationFirstDerivative (const Quantity< Second > &retarded_dt) const
	Compute first time derivative of acceleration at retarded time.

Vector3< Quantity< Newton > >	ComputeMagneticGradientForce (const MagneticSource &field_source) const
	Compute magnetic gradient force using finite differences.

Vector3< Quantity< Newton > >	ComputeElectricGradientForce (const ChargeSource &field_source) const
	Compute electric gradient force using finite differences.

Static Private Member Functions
static Vector3< Quantity< CoulombMeter > >	ComputeRelativisticDipoleMoment (const Vector3< Quantity< MeterPerSecond > > &v, const Vector3< Quantity< AmpereMeterSquared > > &m)
	Compute the relativistic electric dipole moment.

Private Attributes
Vector3< Quantity< AmpereMeterSquared > >	moment_

Vector3< Quantity< AmpereMeterSquared > >	initial_moment_

Quantity< KilogramMeterSquared >	moment_of_inertia_

Quaternion< Scalar >	orientation_ {}

Vector3< Quantity< RadianPerSecond > >	angular_velocity_ {}

Vector3< Quantity< NewtonMeter > >	external_torque_ {}

TimeHistory< Vector3< Quantity< Meter > > >	position_history_

TimeHistory< Vector3< Quantity< MeterPerSecond > > >	velocity_history_

TimeHistory< Vector3< Quantity< MeterPerSecondSquared > > >	acceleration_history_

TimeHistory< Vector3< Quantity< AmpereMeterSquared > > >	moment_history_

TimeHistory< Vector3< Quantity< CoulombMeter > > >	electric_dipole_history_

Additional Inherited Members
Protected Attributes inherited from Phyth::Mechanics::Particle
Quantity< Kilogram >	mass_

Vector3< Quantity< MeterPerSecond > >	velocity_ {}

bool	fixed_ {false}

Vector3< Quantity< Newton > >	external_force_ {}

Vector3< Quantity< Meter > >	position_

std::function< void(Particle *)>	compute_forces_func_

Detailed Description

Magnetic dipole with full electromagnetic field and dynamics.

MagneticDipole represents a moving magnetic dipole that produces both magnetic and electric fields. It inherits from Particle for dynamics, and implements both MagneticSource and ChargeSource interfaces.

The magnetic dipole moment m can rotate (with moment of inertia) and the moving dipole produces a relativistic electric dipole moment p = -(gamma / c^2) * v x m.

Example: auto dipole = std::make_shared<MagneticDipole>( 1.0_kg, Vector3<Quantity<Meter>>(0_m, 0_m, 0_m), Vector3<Quantity<AmpereMeterSquared>>(1.0_Am2, 0_Am2, 0_Am2) );

// Add a magnetic field source dipole->ApplyMagneticForce(magnetic_field);

// In simulation loop: dipole->Integrate();

Note: : The field computation uses retarded potentials. The field diverges at the dipole location.

Definition at line 39 of file MagneticDipole.hpp.

Constructor & Destructor Documentation

◆ MagneticDipole()

Phyth::Electromagnetics::MagneticDipole::MagneticDipole	(	const Quantity< Kilogram >	mass,
		const Vector3< Quantity< Meter > > &	position,
		const Vector3< Quantity< AmpereMeterSquared > > &	moment,
		const Quantity< KilogramMeterSquared > &	moment_of_inertia = `0_kgm2`
	)

inlineexplicit

Construct a magnetic dipole.

Parameters

mass	Mass of the dipole (kg)
position	Initial position (m)
moment	Magnetic dipole moment (A*m^2)
moment_of_inertia	Moment of inertia (kg*m^2), default 0

The dipole moment can rotate if moment_of_inertia > 0. The initial orientation is aligned with the moment vector.

Definition at line 54 of file MagneticDipole.hpp.

Member Function Documentation

◆ ApplyElectricForce()

void Phyth::Electromagnetics::MagneticDipole::ApplyElectricForce ( const ChargeSource & field_source )

inline

Apply all electric forces (gradient + torque)

Definition at line 336 of file MagneticDipole.hpp.

◆ ApplyElectricGradientForce()

void Phyth::Electromagnetics::MagneticDipole::ApplyElectricGradientForce ( const ChargeSource & field_source )

inline

Apply force from electric field gradient.

F = grad(p dot E)

Parameters

field_source The electric field source

Definition at line 310 of file MagneticDipole.hpp.

◆ ApplyElectricTorque()

void Phyth::Electromagnetics::MagneticDipole::ApplyElectricTorque ( const ChargeSource & field_source )

inline

Apply torque from electric field.

tau = p x E

Parameters

field_source The electric field source

Definition at line 322 of file MagneticDipole.hpp.

◆ ApplyElectromagneticForce()

void Phyth::Electromagnetics::MagneticDipole::ApplyElectromagneticForce	(	const MagneticSource &	magnetic_source,
		const ChargeSource &	electric_source
	)

inline

Apply both magnetic and electric forces.

Parameters

magnetic_source	The magnetic field source
electric_source	The electric field source

Definition at line 347 of file MagneticDipole.hpp.

◆ ApplyMagneticForce()

void Phyth::Electromagnetics::MagneticDipole::ApplyMagneticForce ( const MagneticSource & field_source )

inline

Apply all magnetic forces (gradient + torque)

Definition at line 330 of file MagneticDipole.hpp.

◆ ApplyMagneticGradientForce()

void Phyth::Electromagnetics::MagneticDipole::ApplyMagneticGradientForce ( const MagneticSource & field_source )

inline

Apply force from magnetic field gradient.

F = grad(m dot B)

Parameters

field_source The magnetic field source

Definition at line 285 of file MagneticDipole.hpp.

◆ ApplyMagneticTorque()

void Phyth::Electromagnetics::MagneticDipole::ApplyMagneticTorque ( const MagneticSource & field_source )

inline

Apply torque from magnetic field.

tau = m x B

Parameters

field_source The magnetic field source

Definition at line 297 of file MagneticDipole.hpp.

◆ ApplyTorque()

void Phyth::Electromagnetics::MagneticDipole::ApplyTorque ( const Vector3< Quantity< NewtonMeter > > & torque )

inline

Apply a torque to the dipole.

Parameters

torque Torque vector (N*m)

The torque affects the dipole's orientation if moment_of_inertia > 0.

Definition at line 360 of file MagneticDipole.hpp.

◆ ComputeAccelerationFirstDerivative()

Vector3< decltype(1_mps2/1_s)> Phyth::Electromagnetics::MagneticDipole::ComputeAccelerationFirstDerivative ( const Quantity< Second > & retarded_dt ) const

inlineprivate

Compute first time derivative of acceleration at retarded time.

Definition at line 734 of file MagneticDipole.hpp.

◆ ComputeElectricDipoleFirstDerivative()

Vector3< decltype(1_Cm/1_s)> Phyth::Electromagnetics::MagneticDipole::ComputeElectricDipoleFirstDerivative ( const Quantity< Second > & retarded_dt ) const

inlineprivate

Compute first time derivative of electric dipole moment at retarded time.

Definition at line 681 of file MagneticDipole.hpp.

◆ ComputeElectricDipoleSecondDerivative()

Vector3< decltype(1_Cm/1_s/1_s)> Phyth::Electromagnetics::MagneticDipole::ComputeElectricDipoleSecondDerivative ( const Quantity< Second > & retarded_dt ) const

inlineprivate

Compute second time derivative of electric dipole moment at retarded time.

Definition at line 706 of file MagneticDipole.hpp.

◆ ComputeElectricGradientForce()

Vector3< Quantity< Newton > > Phyth::Electromagnetics::MagneticDipole::ComputeElectricGradientForce ( const ChargeSource & field_source ) const

inlineprivate

Compute electric gradient force using finite differences.

F = grad(p dot E)

Uses central differences with step epsilon_m.

Definition at line 804 of file MagneticDipole.hpp.

◆ ComputeMagneticGradientForce()

Vector3< Quantity< Newton > > Phyth::Electromagnetics::MagneticDipole::ComputeMagneticGradientForce ( const MagneticSource & field_source ) const

inlineprivate

Compute magnetic gradient force using finite differences.

F = grad(m dot B)

Uses central differences with step epsilon_m.

Definition at line 763 of file MagneticDipole.hpp.

◆ ComputeMomentFirstDerivative()

Vector3< decltype(0_Am2/1_s)> Phyth::Electromagnetics::MagneticDipole::ComputeMomentFirstDerivative ( const Quantity< Second > & retarded_dt ) const

inlineprivate

Compute first time derivative of magnetic moment at retarded time.

Definition at line 628 of file MagneticDipole.hpp.

◆ ComputeMomentSecondDerivative()

Vector3< decltype(0_Am2/1_s/1_s)> Phyth::Electromagnetics::MagneticDipole::ComputeMomentSecondDerivative ( const Quantity< Second > & retarded_dt ) const

inlineprivate

Compute second time derivative of magnetic moment at retarded time.

Definition at line 653 of file MagneticDipole.hpp.

◆ ComputeRelativisticDipoleMoment()

static Vector3< Quantity< CoulombMeter > > Phyth::Electromagnetics::MagneticDipole::ComputeRelativisticDipoleMoment	(	const Vector3< Quantity< MeterPerSecond > > &	v,
		const Vector3< Quantity< AmpereMeterSquared > > &	m
	)

inlinestaticprivate

Compute the relativistic electric dipole moment.

p = -(gamma / c^2) * v x m gamma = 1 / sqrt(1 - (v/c)^2)

For v near c, uses the ultra-relativistic limit: p = -v x m / c^2

Definition at line 481 of file MagneticDipole.hpp.

◆ GetAccelerationAtOffset()

Vector3< Quantity< MeterPerSecondSquared > > Phyth::Electromagnetics::MagneticDipole::GetAccelerationAtOffset ( const Quantity< Second > & offset ) const

inlineprivate

Get acceleration at a time offset in the past.

Definition at line 516 of file MagneticDipole.hpp.

◆ GetAngularVelocity()

const Vector3< Quantity< RadianPerSecond > > & Phyth::Electromagnetics::MagneticDipole::GetAngularVelocity ( ) const

inline

Returns: Current angular velocity (rad/s)

Definition at line 436 of file MagneticDipole.hpp.

◆ GetElectricDipoleAtOffset()

Vector3< Quantity< CoulombMeter > > Phyth::Electromagnetics::MagneticDipole::GetElectricDipoleAtOffset ( const Quantity< Second > & offset ) const

inlineprivate

Get electric dipole moment at a time offset in the past.

Definition at line 530 of file MagneticDipole.hpp.

◆ GetElectricDipoleMoment()

Vector3< Quantity< CoulombMeter > > Phyth::Electromagnetics::MagneticDipole::GetElectricDipoleMoment ( ) const

inline

Returns: The electric dipole moment p = -(gamma/c^2) * v x m (C*m)

Definition at line 274 of file MagneticDipole.hpp.

◆ GetElectricFieldAt()

Vector3< Quantity< NewtonPerCoulomb > > Phyth::Electromagnetics::MagneticDipole::GetElectricFieldAt ( const Vector3< Quantity< Meter > > & point ) const

inlineoverridevirtual

Get the electric field at a point.

For stationary dipoles, uses the static electric dipole formula: E = k_E * (3 * (p dot hat_r) * hat_r - p) / r^3 where p is the relativistic electric dipole moment.

For moving dipoles, uses retarded potentials with contributions from the electric dipole moment and its time derivatives.

Parameters

point Position to evaluate the field (meters)

Returns: Electric field intensity E (N/C)

Exceptions

std::runtime_error If point is at the dipole location

Implements Phyth::Electromagnetics::ChargeSource.

Definition at line 159 of file MagneticDipole.hpp.

◆ GetElectricPotentialAt()

Quantity< Volt > Phyth::Electromagnetics::MagneticDipole::GetElectricPotentialAt ( const Vector3< Quantity< Meter > > & point ) const

inlineoverridevirtual

Get the electric potential at a point.

For stationary dipoles, returns 0 (electric dipole potential is zero in the static limit).

For moving dipoles, uses the retarded potential: V = k_E * (p dot hat_R) / (R^2 * (1 - hat_R dot beta))

Parameters

point Position to evaluate the potential (meters)

Returns: Electric potential V (Volts)

Exceptions

std::runtime_error If point is at the dipole location or the denominator factor approaches zero

Implements Phyth::Electromagnetics::ChargeSource.

Definition at line 219 of file MagneticDipole.hpp.

◆ GetMagneticFieldAt()

Vector3< Quantity< Tesla > > Phyth::Electromagnetics::MagneticDipole::GetMagneticFieldAt ( const Vector3< Quantity< Meter > > & point ) const

inlineoverridevirtual

Get the magnetic field at a point.

For stationary or slowly moving dipoles, uses the static dipole formula: B = (mu_0 / (4 * pi)) * (3 * (m dot hat_r) * hat_r - m) / r^3

For moving dipoles, uses retarded potentials with contributions from the dipole moment and its time derivatives.

Parameters

point Position to evaluate the field (meters)

Returns: Magnetic flux density B (Tesla)

Exceptions

std::runtime_error If point is at the dipole location

Implements Phyth::Electromagnetics::MagneticSource.

Definition at line 101 of file MagneticDipole.hpp.

◆ GetMinimumDistanceTo()

Quantity< Meter > Phyth::Electromagnetics::MagneticDipole::GetMinimumDistanceTo ( const Vector3< Quantity< Meter > > & point ) const

inlineoverridevirtual

Get the minimum distance from a point to the dipole location.

Parameters

point Position to compute distance from

Returns: Distance to the dipole location (meters)

Implements Phyth::Electromagnetics::ChargeSource.

Definition at line 268 of file MagneticDipole.hpp.

◆ GetMoment()

const Vector3< Quantity< AmpereMeterSquared > > & Phyth::Electromagnetics::MagneticDipole::GetMoment ( ) const

inline

Returns: Current magnetic dipole moment (A*m^2)

Definition at line 414 of file MagneticDipole.hpp.

◆ GetMomentAtOffset()

Vector3< Quantity< AmpereMeterSquared > > Phyth::Electromagnetics::MagneticDipole::GetMomentAtOffset ( const Quantity< Second > & offset ) const

inlineprivate

Get magnetic moment at a time offset in the past.

Definition at line 523 of file MagneticDipole.hpp.

◆ GetMomentOfInertia()

Quantity< KilogramMeterSquared > Phyth::Electromagnetics::MagneticDipole::GetMomentOfInertia ( ) const

inline

Returns: Moment of inertia (kg*m^2)

Definition at line 446 of file MagneticDipole.hpp.

◆ GetOrientation()

const Quaternion< Scalar > & Phyth::Electromagnetics::MagneticDipole::GetOrientation ( ) const

inline

Returns: Current orientation quaternion

Definition at line 419 of file MagneticDipole.hpp.

◆ GetPositionAtOffset()

Vector3< Quantity< Meter > > Phyth::Electromagnetics::MagneticDipole::GetPositionAtOffset ( const Quantity< Second > & offset ) const

inlineprivate

Get position at a time offset in the past.

Definition at line 502 of file MagneticDipole.hpp.

◆ GetRelativisticDipoleMomentCurrent()

Vector3< Quantity< CoulombMeter > > Phyth::Electromagnetics::MagneticDipole::GetRelativisticDipoleMomentCurrent ( ) const

inlineprivate

Returns: Current relativistic electric dipole moment

Definition at line 496 of file MagneticDipole.hpp.

◆ GetTotalChargeValue()

Quantity< Coulomb > Phyth::Electromagnetics::MagneticDipole::GetTotalChargeValue ( ) const

inlineoverridevirtual

Get the total charge of the dipole.

Returns: 0_C (a magnetic dipole has zero net charge)

Implements Phyth::Electromagnetics::ChargeSource.

Definition at line 257 of file MagneticDipole.hpp.

◆ GetVelocityAtOffset()

Vector3< Quantity< MeterPerSecond > > Phyth::Electromagnetics::MagneticDipole::GetVelocityAtOffset ( const Quantity< Second > & offset ) const

inlineprivate

Get velocity at a time offset in the past.

Definition at line 509 of file MagneticDipole.hpp.

◆ Integrate()

void Phyth::Electromagnetics::MagneticDipole::Integrate ( )

inlineoverridevirtualnoexcept

Integrate dynamics using velocity Verlet.

Overrides Particle::Integrate to also update dipole orientation, moment, and history buffers.

Reimplemented from Phyth::Mechanics::Particle.

Definition at line 370 of file MagneticDipole.hpp.

◆ SetAngularVelocity()

void Phyth::Electromagnetics::MagneticDipole::SetAngularVelocity ( const Vector3< Quantity< RadianPerSecond > > & omega )

inline

Set the angular velocity.

Definition at line 441 of file MagneticDipole.hpp.

◆ SetComputeForcesFunction()

void Phyth::Electromagnetics::MagneticDipole::SetComputeForcesFunction ( const std::function< void(MagneticDipole *)> & func )

inlinenoexcept

Set the force computation function.

Parameters

func	Function that applies forces to the dipole via ApplyForce()

This wraps the Particle::SetComputeForcesFunction to accept MagneticDipole pointers directly.

Definition at line 80 of file MagneticDipole.hpp.

◆ SetMoment()

void Phyth::Electromagnetics::MagneticDipole::SetMoment ( const Vector3< Quantity< AmpereMeterSquared > > & m )

inline

Set the magnetic dipole moment.

Parameters

m	New magnetic dipole moment (A*m^2)

The initial moment is updated and the current moment is aligned with the current orientation.

Definition at line 408 of file MagneticDipole.hpp.

◆ SetMomentOfInertia()

void Phyth::Electromagnetics::MagneticDipole::SetMomentOfInertia ( const Quantity< KilogramMeterSquared > & I )

inline

Set the moment of inertia.

Definition at line 451 of file MagneticDipole.hpp.

◆ SetOrientation()

void Phyth::Electromagnetics::MagneticDipole::SetOrientation ( const Quaternion< Scalar > & q )

inline

Set the orientation quaternion.

Parameters

q	The new orientation (will be normalized)

The magnetic moment is updated to align with the new orientation.

Definition at line 430 of file MagneticDipole.hpp.

◆ SolveRetardedTimeOffset()

Quantity< Second > Phyth::Electromagnetics::MagneticDipole::SolveRetardedTimeOffset ( const Vector3< Quantity< Meter > > & point ) const

inlineprivate

Solve for the retarded time offset using Newton's method.

Solves R(t_ret) = c * (t - t_ret) for t_ret. Falls back to bisection if Newton fails.

Definition at line 542 of file MagneticDipole.hpp.

◆ SolveRetardedTimeOffsetBisection()

Quantity< Second > Phyth::Electromagnetics::MagneticDipole::SolveRetardedTimeOffsetBisection	(	const Vector3< Quantity< Meter > > &	point,
		Quantity< Second >	dt_low,
		Quantity< Second >	dt_high
	)		const

inlineprivate

Solve for the retarded time offset using bisection method.

Fallback when Newton's method fails to converge.

Definition at line 588 of file MagneticDipole.hpp.

Member Data Documentation

◆ acceleration_history_

TimeHistory<Vector3<Quantity<MeterPerSecondSquared> > > Phyth::Electromagnetics::MagneticDipole::acceleration_history_

private

Definition at line 466 of file MagneticDipole.hpp.

◆ angular_velocity_

Vector3<Quantity<RadianPerSecond> > Phyth::Electromagnetics::MagneticDipole::angular_velocity_ {}

private

Definition at line 461 of file MagneticDipole.hpp.

◆ electric_dipole_history_

TimeHistory<Vector3<Quantity<CoulombMeter> > > Phyth::Electromagnetics::MagneticDipole::electric_dipole_history_

private

Definition at line 469 of file MagneticDipole.hpp.

◆ external_torque_

Vector3<Quantity<NewtonMeter> > Phyth::Electromagnetics::MagneticDipole::external_torque_ {}

private

Definition at line 462 of file MagneticDipole.hpp.

◆ initial_moment_

Vector3<Quantity<AmpereMeterSquared> > Phyth::Electromagnetics::MagneticDipole::initial_moment_

private

Definition at line 457 of file MagneticDipole.hpp.

◆ moment_

Vector3<Quantity<AmpereMeterSquared> > Phyth::Electromagnetics::MagneticDipole::moment_

private

Definition at line 456 of file MagneticDipole.hpp.

◆ moment_history_

TimeHistory<Vector3<Quantity<AmpereMeterSquared> > > Phyth::Electromagnetics::MagneticDipole::moment_history_

private

Definition at line 467 of file MagneticDipole.hpp.

◆ moment_of_inertia_

Quantity<KilogramMeterSquared> Phyth::Electromagnetics::MagneticDipole::moment_of_inertia_

private

Definition at line 459 of file MagneticDipole.hpp.

◆ orientation_

Quaternion<Scalar> Phyth::Electromagnetics::MagneticDipole::orientation_ {}

private

Definition at line 460 of file MagneticDipole.hpp.

◆ position_history_

TimeHistory<Vector3<Quantity<Meter> > > Phyth::Electromagnetics::MagneticDipole::position_history_

private

Definition at line 464 of file MagneticDipole.hpp.

◆ velocity_history_

TimeHistory<Vector3<Quantity<MeterPerSecond> > > Phyth::Electromagnetics::MagneticDipole::velocity_history_

private

Definition at line 465 of file MagneticDipole.hpp.

The documentation for this class was generated from the following file:

include/Phyth/Elements/Electromagnetics/FieldSources/MagneticDipole.hpp

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MagneticDipole()

Member Function Documentation

◆ ApplyElectricForce()

◆ ApplyElectricGradientForce()

◆ ApplyElectricTorque()

◆ ApplyElectromagneticForce()

◆ ApplyMagneticForce()

◆ ApplyMagneticGradientForce()

◆ ApplyMagneticTorque()

◆ ApplyTorque()

◆ ComputeAccelerationFirstDerivative()

◆ ComputeElectricDipoleFirstDerivative()

◆ ComputeElectricDipoleSecondDerivative()

◆ ComputeElectricGradientForce()

◆ ComputeMagneticGradientForce()

◆ ComputeMomentFirstDerivative()

◆ ComputeMomentSecondDerivative()

◆ ComputeRelativisticDipoleMoment()

◆ GetAccelerationAtOffset()

◆ GetAngularVelocity()

◆ GetElectricDipoleAtOffset()

◆ GetElectricDipoleMoment()

◆ GetElectricFieldAt()

◆ GetElectricPotentialAt()

◆ GetMagneticFieldAt()

◆ GetMinimumDistanceTo()

◆ GetMoment()

◆ GetMomentAtOffset()

◆ GetMomentOfInertia()

◆ GetOrientation()

◆ GetPositionAtOffset()

◆ GetRelativisticDipoleMomentCurrent()

◆ GetTotalChargeValue()

◆ GetVelocityAtOffset()

◆ Integrate()

◆ SetAngularVelocity()

◆ SetComputeForcesFunction()

◆ SetMoment()

◆ SetMomentOfInertia()

◆ SetOrientation()

◆ SolveRetardedTimeOffset()

◆ SolveRetardedTimeOffsetBisection()

Member Data Documentation

◆ acceleration_history_

◆ angular_velocity_

◆ electric_dipole_history_

◆ external_torque_

◆ initial_moment_

◆ moment_

◆ moment_history_

◆ moment_of_inertia_

◆ orientation_

◆ position_history_

◆ velocity_history_
