Uniform volume charge distribution in a rectangular box. More...

#include <VolumeSource.hpp>

Inheritance diagram for Phyth::Electromagnetics::VolumeCharge:

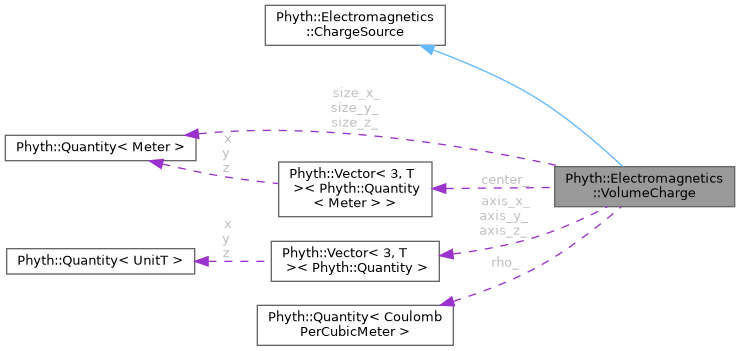

Collaboration diagram for Phyth::Electromagnetics::VolumeCharge:

[legend]

Public Member Functions
	VolumeCharge (const Vector3< Quantity< Meter > > &center, const Vector3< Scalar > &axis_x, const Vector3< Scalar > &axis_y, const Vector3< Scalar > &axis_z, const Quantity< Meter > size_x, const Quantity< Meter > size_y, const Quantity< Meter > size_z, const Quantity< CoulombPerCubicMeter > rho)
	Construct a rectangular volume charge.

Vector3< Quantity< NewtonPerCoulomb > >	GetElectricFieldAt (const Vector3< Quantity< Meter > > &point) const override
	Compute the electric field at a point using numerical integration.

Quantity< Volt >	GetElectricPotentialAt (const Vector3< Quantity< Meter > > &point) const override
	Compute the electric potential at a point using numerical integration.

Quantity< Coulomb >	GetTotalChargeValue () const override
	Get the total charge of the volume.

Quantity< Meter >	GetMinimumDistanceTo (const Vector3< Quantity< Meter > > &point) const override
	Get the minimum distance from a point to the rectangular box.

Quantity< CoulombPerCubicMeter >	GetChargeDensityAt (const Vector3< Quantity< Meter > > &point) const override
	Get the charge density at a point.

Public Member Functions inherited from Phyth::Electromagnetics::ChargeSource
virtual	~ChargeSource ()=default

Private Member Functions
Vector3< Quantity< NewtonPerCoulomb > >	NumericalIntegrateField (const Vector3< Quantity< Meter > > &point, const int nx, const int ny, const int nz) const
	Numerical integration of electric field over the volume.

Quantity< Volt >	NumericalIntegratePotential (const Vector3< Quantity< Meter > > &point, const int nx, const int ny, const int nz) const
	Numerical integration of electric potential over the volume.

Private Attributes
Vector3< Quantity< Meter > >	center_

Vector3< Scalar >	axis_x_

Vector3< Scalar >	axis_y_

Vector3< Scalar >	axis_z_

Quantity< Meter >	size_x_

Quantity< Meter >	size_y_

Quantity< Meter >	size_z_

Quantity< CoulombPerCubicMeter >	rho_

Detailed Description

Uniform volume charge distribution in a rectangular box.

VolumeCharge represents a rectangular box with uniform volume charge density rho (C/m^3). The box is defined by its center, three orthogonal axes, and dimensions along each axis.

Field and potential are computed by numerical integration over the volume using the midpoint rule. Default resolution is 16x16x16 segments.

Example: auto center = Vector3<Quantity<Meter>>(0_m, 0_m, 0_m); auto ex = Vector3<Scalar>(1, 0, 0); auto ey = Vector3<Scalar>(0, 1, 0); auto ez = Vector3<Scalar>(0, 0, 1); auto rho = 1.0e-6_C/m3;

VolumeCharge volume(center, ex, ey, ez, 1.0_m, 1.0_m, 1.0_m, rho); auto point = Vector3<Quantity<Meter>>(0_m, 0_m, 0.5_m); auto E = volume.GetElectricFieldAt(point); auto V = volume.GetElectricPotentialAt(point);

Note: The field is evaluated numerically, so accuracy depends on the integration resolution. Higher resolution improves accuracy but increases computation time.

Definition at line 36 of file VolumeSource.hpp.

Constructor & Destructor Documentation

◆ VolumeCharge()

Phyth::Electromagnetics::VolumeCharge::VolumeCharge	(	const Vector3< Quantity< Meter > > &	center,
		const Vector3< Scalar > &	axis_x,
		const Vector3< Scalar > &	axis_y,
		const Vector3< Scalar > &	axis_z,
		const Quantity< Meter >	size_x,
		const Quantity< Meter >	size_y,
		const Quantity< Meter >	size_z,
		const Quantity< CoulombPerCubicMeter >	rho
	)

inline

Construct a rectangular volume charge.

Parameters

center	Center of the box (meters)
axis_x	Direction of the x-axis (must be unit vector)
axis_y	Direction of the y-axis (must be unit vector)
axis_z	Direction of the z-axis (must be unit vector)
size_x	Length along axis_x (meters)
size_y	Length along axis_y (meters)
size_z	Length along axis_z (meters)
rho	Volume charge density (C/m^3)

The three axes must be mutually orthogonal. This is checked at runtime with asserts.

Definition at line 53 of file VolumeSource.hpp.

Member Function Documentation

◆ GetChargeDensityAt()

Quantity< CoulombPerCubicMeter > Phyth::Electromagnetics::VolumeCharge::GetChargeDensityAt ( const Vector3< Quantity< Meter > > & point ) const

inlineoverridevirtual

Get the charge density at a point.

Parameters

point Position to evaluate (meters)

Returns: rho if point is inside the box, 0 otherwise

This overrides the default implementation to return the actual charge density for points inside the volume.

Reimplemented from Phyth::Electromagnetics::ChargeSource.

Definition at line 141 of file VolumeSource.hpp.

◆ GetElectricFieldAt()

Vector3< Quantity< NewtonPerCoulomb > > Phyth::Electromagnetics::VolumeCharge::GetElectricFieldAt ( const Vector3< Quantity< Meter > > & point ) const

inlineoverridevirtual

Compute the electric field at a point using numerical integration.

Parameters

point Position to evaluate the field (meters)

Returns: Electric field intensity E (N/C)

The field is integrated using the midpoint rule with 16x16x16 segments. Points inside the volume are skipped (their contribution is ignored).

Implements Phyth::Electromagnetics::ChargeSource.

Definition at line 79 of file VolumeSource.hpp.

◆ GetElectricPotentialAt()

Quantity< Volt > Phyth::Electromagnetics::VolumeCharge::GetElectricPotentialAt ( const Vector3< Quantity< Meter > > & point ) const

inlineoverridevirtual

Compute the electric potential at a point using numerical integration.

Parameters

point Position to evaluate the potential (meters)

Returns: Electric potential V (Volts)

The potential is integrated using the midpoint rule with 16x16x16 segments. Points inside the volume are skipped (their contribution is ignored).

Implements Phyth::Electromagnetics::ChargeSource.

Definition at line 93 of file VolumeSource.hpp.

◆ GetMinimumDistanceTo()

Quantity< Meter > Phyth::Electromagnetics::VolumeCharge::GetMinimumDistanceTo ( const Vector3< Quantity< Meter > > & point ) const

inlineoverridevirtual

Get the minimum distance from a point to the rectangular box.

Parameters

point Position to compute distance from

Returns: Distance to the closest point on the box surface or interior (meters)

The closest point is found by projecting the point onto the box axes and clamping to the box bounds. If the point is inside the box, the minimum distance is 0.

Implements Phyth::Electromagnetics::ChargeSource.

Definition at line 117 of file VolumeSource.hpp.

◆ GetTotalChargeValue()

Quantity< Coulomb > Phyth::Electromagnetics::VolumeCharge::GetTotalChargeValue ( ) const

inlineoverridevirtual

Get the total charge of the volume.

Returns: rho * size_x * size_y * size_z (Coulombs)

Implements Phyth::Electromagnetics::ChargeSource.

Definition at line 102 of file VolumeSource.hpp.

◆ NumericalIntegrateField()

Vector3< Quantity< NewtonPerCoulomb > > Phyth::Electromagnetics::VolumeCharge::NumericalIntegrateField	(	const Vector3< Quantity< Meter > > &	point,
		const int	nx,
		const int	ny,
		const int	nz
	)		const

inlineprivate

Numerical integration of electric field over the volume.

Uses the midpoint rule with nx * ny * nz segments. Each segment contributes dE = k_E * dq / r^2 * hat_r.

Parameters

point	Evaluation point
nx	Number of segments along x axis
ny	Number of segments along y axis
nz	Number of segments along z axis

Returns: Electric field intensity E (N/C)

Definition at line 172 of file VolumeSource.hpp.

◆ NumericalIntegratePotential()

Quantity< Volt > Phyth::Electromagnetics::VolumeCharge::NumericalIntegratePotential	(	const Vector3< Quantity< Meter > > &	point,
		const int	nx,
		const int	ny,
		const int	nz
	)		const

inlineprivate

Numerical integration of electric potential over the volume.

Uses the midpoint rule with nx * ny * nz segments. Each segment contributes dV = k_E * dq / r.

Parameters

point	Evaluation point
nx	Number of segments along x axis
ny	Number of segments along y axis
nz	Number of segments along z axis

Returns: Electric potential V (Volts)

Definition at line 214 of file VolumeSource.hpp.

Member Data Documentation

◆ axis_x_

Vector3<Scalar> Phyth::Electromagnetics::VolumeCharge::axis_x_

private

Definition at line 155 of file VolumeSource.hpp.

◆ axis_y_

Vector3<Scalar> Phyth::Electromagnetics::VolumeCharge::axis_y_

private

Definition at line 155 of file VolumeSource.hpp.

◆ axis_z_

Vector3<Scalar> Phyth::Electromagnetics::VolumeCharge::axis_z_

private

Definition at line 155 of file VolumeSource.hpp.

◆ center_

Vector3<Quantity<Meter> > Phyth::Electromagnetics::VolumeCharge::center_

private

Definition at line 154 of file VolumeSource.hpp.

◆ rho_

Quantity<CoulombPerCubicMeter> Phyth::Electromagnetics::VolumeCharge::rho_

private

Definition at line 157 of file VolumeSource.hpp.

◆ size_x_

Quantity<Meter> Phyth::Electromagnetics::VolumeCharge::size_x_

private

Definition at line 156 of file VolumeSource.hpp.

◆ size_y_

Quantity<Meter> Phyth::Electromagnetics::VolumeCharge::size_y_

private

Definition at line 156 of file VolumeSource.hpp.

◆ size_z_

Quantity<Meter> Phyth::Electromagnetics::VolumeCharge::size_z_

private

Definition at line 156 of file VolumeSource.hpp.

The documentation for this class was generated from the following file:

include/Phyth/Elements/Electromagnetics/FieldSources/VolumeSource.hpp
