Phyth::Mechanics::SurfaceForce Class Reference

Uniform surface traction on a rectangular patch. More...

#include <SurfaceForce.hpp>

Inheritance diagram for Phyth::Mechanics::SurfaceForce:

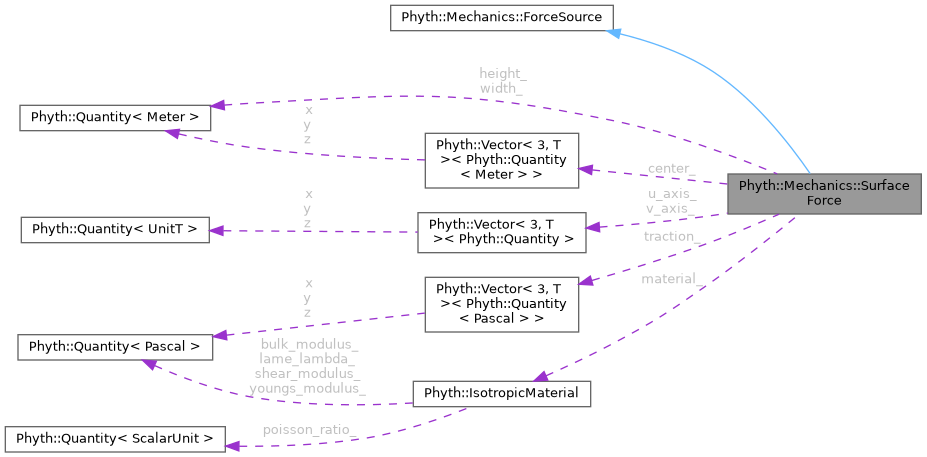

Collaboration diagram for Phyth::Mechanics::SurfaceForce:

Public Member Functions
	SurfaceForce (const Vector3< Quantity< Meter > > &center, const Vector3< Scalar > &u_axis, const Vector3< Scalar > &v_axis, const Quantity< Meter > width, const Quantity< Meter > height, const Vector3< Quantity< Pascal > > &traction, const IsotropicMaterial &material) noexcept
	Construct a rectangular surface traction.
Matrix3x3< Quantity< Pascal > >	GetStressAt (const Vector3< Quantity< Meter > > &point) const override
	Compute stress tensor at a point using numerical integration.
Vector3< Quantity< Newton > >	GetForceAt (const Vector3< Quantity< Meter > > &point) const override
	Get the force vector at a point.
Vector3< Quantity< Newton > >	GetTotalForce () const override
	Get the total force of this source.
Quantity< Meter >	GetMinimumDistanceTo (const Vector3< Quantity< Meter > > &point) const override
	Get the minimum distance from a point to the rectangular surface.
Vector3< Quantity< Pascal > >	GetTraction () const
	Get the traction vector.
void	SetTraction (const Vector3< Quantity< Pascal > > &traction)
	Set the traction vector.
Public Member Functions inherited from Phyth::Mechanics::ForceSource
virtual	~ForceSource ()=default
virtual Vector3< Quantity< NewtonPerMeterCubed > >	GetBodyForceDensityAt (const Vector3< Quantity< Meter > > &point) const
	Get the body force density at a point.

Private Member Functions
Matrix3x3< Quantity< Pascal > >	NumericalIntegrateStress (const Vector3< Quantity< Meter > > &point, const int nu, const int nv) const
	Numerical integration of stress over the surface.

Private Attributes
Vector3< Quantity< Meter > >	center_
Vector3< Scalar >	u_axis_
Vector3< Scalar >	v_axis_
Quantity< Meter >	width_
Quantity< Meter >	height_
Vector3< Quantity< Pascal > >	traction_
IsotropicMaterial	material_

Detailed Description

Uniform surface traction on a rectangular patch.

SurfaceForce represents a traction distribution on a flat rectangular surface. The stress field is computed by numerical integration using the midpoint rule with configurable resolution.

Example:

auto center = Vector3<Quantity<Meter>>(0_m, 0_m, 0_m);
auto u_axis = Vector3<Scalar>(1, 0, 0);
auto v_axis = Vector3<Scalar>(0, 1, 0);
auto traction = Vector3<Quantity<Pascal>>(0_Pa, 0_Pa, -1000_Pa);

SurfaceForce surface(center, u_axis, v_axis, 1.0_m, 1.0_m, traction, material);
auto stress = surface.GetStressAt(point);

Definition at line 29 of file SurfaceForce.hpp.

Constructor & Destructor Documentation

SurfaceForce()

Phyth::Mechanics::SurfaceForce::SurfaceForce ( const Vector3< Quantity< Meter > > &  center, const Vector3< Scalar > &  u_axis, const Vector3< Scalar > &  v_axis, const Quantity< Meter >  width, const Quantity< Meter >  height, const Vector3< Quantity< Pascal > > &  traction, const IsotropicMaterial &  material  )

inlineexplicitnoexcept

Construct a rectangular surface traction.

Parameters

center	Center of the rectangle
u_axis	Direction of the width axis (unit vector)
v_axis	Direction of the height axis (unit vector)
width	Length along u_axis
height	Length along v_axis
traction	Uniform traction vector
material	Material properties

u_axis and v_axis must be orthogonal. This is checked at runtime.

Definition at line 44 of file SurfaceForce.hpp.

Member Function Documentation

GetForceAt()

Vector3< Quantity< Newton > > Phyth::Mechanics::SurfaceForce::GetForceAt ( const Vector3< Quantity< Meter > > &  point ) const

inlineoverridevirtual

Get the force vector at a point.

Surface force is distributed, so returns zero at any single point.

Implements Phyth::Mechanics::ForceSource.

Definition at line 80 of file SurfaceForce.hpp.

GetMinimumDistanceTo()

Quantity< Meter > Phyth::Mechanics::SurfaceForce::GetMinimumDistanceTo ( const Vector3< Quantity< Meter > > &  point ) const

inlineoverridevirtual

Get the minimum distance from a point to the rectangular surface.

Parameters

point

Position to compute distance from

Returns

Distance to the closest point on the surface

Implements Phyth::Mechanics::ForceSource.

Definition at line 101 of file SurfaceForce.hpp.

GetStressAt()

Matrix3x3< Quantity< Pascal > > Phyth::Mechanics::SurfaceForce::GetStressAt ( const Vector3< Quantity< Meter > > &  point ) const

inlineoverridevirtual

Compute stress tensor at a point using numerical integration.

Parameters

point

Position to evaluate

Returns

Stress tensor in pascals

Implements Phyth::Mechanics::ForceSource.

Definition at line 69 of file SurfaceForce.hpp.

GetTotalForce()

Vector3< Quantity< Newton > > Phyth::Mechanics::SurfaceForce::GetTotalForce ( ) const

inlineoverridevirtual

Get the total force of this source.

Returns

traction * area

Implements Phyth::Mechanics::ForceSource.

Definition at line 91 of file SurfaceForce.hpp.

GetTraction()

Vector3< Quantity< Pascal > > Phyth::Mechanics::SurfaceForce::GetTraction ( ) const

inline

Get the traction vector.

Definition at line 118 of file SurfaceForce.hpp.

NumericalIntegrateStress()

Matrix3x3< Quantity< Pascal > > Phyth::Mechanics::SurfaceForce::NumericalIntegrateStress ( const Vector3< Quantity< Meter > > &  point, const int  nu, const int  nv  ) const

inlineprivate

Numerical integration of stress over the surface.

Uses the midpoint rule with nu * nv segments. Each segment contributes dsigma = Kelvin(dF) where dF = traction * dA.

Parameters

point	Evaluation point
nu	Number of segments along u axis
nv	Number of segments along v axis

Returns

Stress tensor in pascals

Definition at line 147 of file SurfaceForce.hpp.

SetTraction()

void Phyth::Mechanics::SurfaceForce::SetTraction ( const Vector3< Quantity< Pascal > > &  traction )

inline

Set the traction vector.

Definition at line 125 of file SurfaceForce.hpp.

Member Data Documentation

center_

Vector3<Quantity<Meter> > Phyth::Mechanics::SurfaceForce::center_

private

Definition at line 130 of file SurfaceForce.hpp.

height_

Quantity<Meter> Phyth::Mechanics::SurfaceForce::height_

private

Definition at line 132 of file SurfaceForce.hpp.

material_

IsotropicMaterial Phyth::Mechanics::SurfaceForce::material_

private

Definition at line 134 of file SurfaceForce.hpp.

traction_

Vector3<Quantity<Pascal> > Phyth::Mechanics::SurfaceForce::traction_

private

Definition at line 133 of file SurfaceForce.hpp.

u_axis_

Vector3<Scalar> Phyth::Mechanics::SurfaceForce::u_axis_

private

Definition at line 131 of file SurfaceForce.hpp.

v_axis_

Vector3<Scalar> Phyth::Mechanics::SurfaceForce::v_axis_

private

Definition at line 131 of file SurfaceForce.hpp.

width_

Quantity<Meter> Phyth::Mechanics::SurfaceForce::width_

private

Definition at line 132 of file SurfaceForce.hpp.

---

The documentation for this class was generated from the following file:
